Specifications
Model Parameters
Name

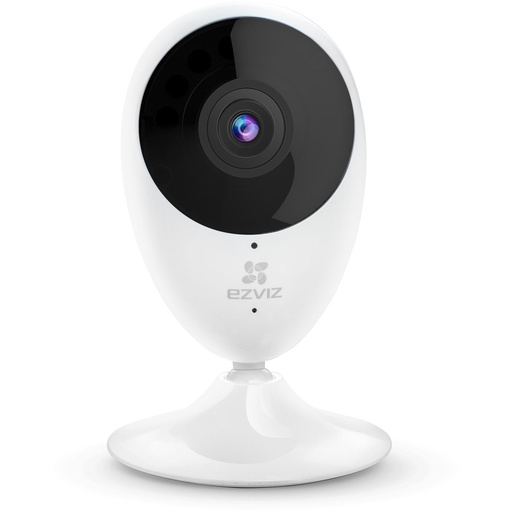

C2C (Mini O Plus)
C2C (Mini O)
Model
CS-CV206-C0-3B2WFR
CS-CV206-C0-1A1WFR
Camera
Image Sensor
1/2.7’’2MP HD progressive scan CMOS
1/4‘’ 1MP HD progressive scan CMOS
Shutter Speed
Self-adaptive shutter
Self-adaptive shutter
Lens
2.8mm@F2.0, Horizontal angle: 115°, Diagonal angle: 135°
2.8mm@F2.5, Horizontal angle: 90°, Diagonal angle: 111°
Lens Mount
M12
M12
Day & Night
IR-cut filter with auto-switching
IR-cut filter with auto-switching
DNR
3D DNR
3D DNR
WDR
Digital WDR
Digital WDR
Compression
Video Compression
H.264
H.264
H.264 Type
Main profile
Main profile
Video Bit Rate
HD, balanced and smooth bit rate
HD, balanced and smooth bit rate
Max. Resolution
1920×1080
1280×720
Image setting
Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)
Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)
BLC
Support
Support
Network
Storage
Support Micro SD card (Max. 256G)
Support Micro SD card (Max. 256G)
Smart Alarm
Motion detection
Motion detection
Wi-Fi Pairing
SmartConfig (Wi-Fi One-Key Configuration)/AP paring
SmartConfig (Wi-Fi One-Key Configuration)/AP paring
Protocol
EZVIZ cloud proprietary protocol
EZVIZ cloud proprietary protocol
Interface Protocol
EZVIZ cloud proprietary protocol
EZVIZ cloud proprietary protocol
General Features
Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
Minimum Network Requirements
2Mbps
1Mbps
Wi-Fi
Standard
IEEE802.11b, 802.11g, 802.11n
IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz ~ 2.4835 GHz
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
Supports 20MHz
Supports 20MHz
Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate
11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
General
Operating Conditions
-10ºC ~ 50ºC (14°F ~ 122°F), Humidity 95% or less (non-condensing)
-10ºC ~ 50ºC (14°F ~ 122°F), Humidity 95% or less (non-condensing)
Power Supply
DC 5V±10%
DC 5V±10%
Power Consumption
Max. 3W
Max. 3W
IR Range
Max. 7.5 meters
Max. 7.5 meters
Product Dimensions
128mm x 58mm x 38mm
128mm x 58mm x 38mm
Packaging Dimensions
149mm x 87.5mm x 91.5mm
149mm x 87.5mm x 91.5mm
Weight
120g
120g
